Ceramic Filter Discs

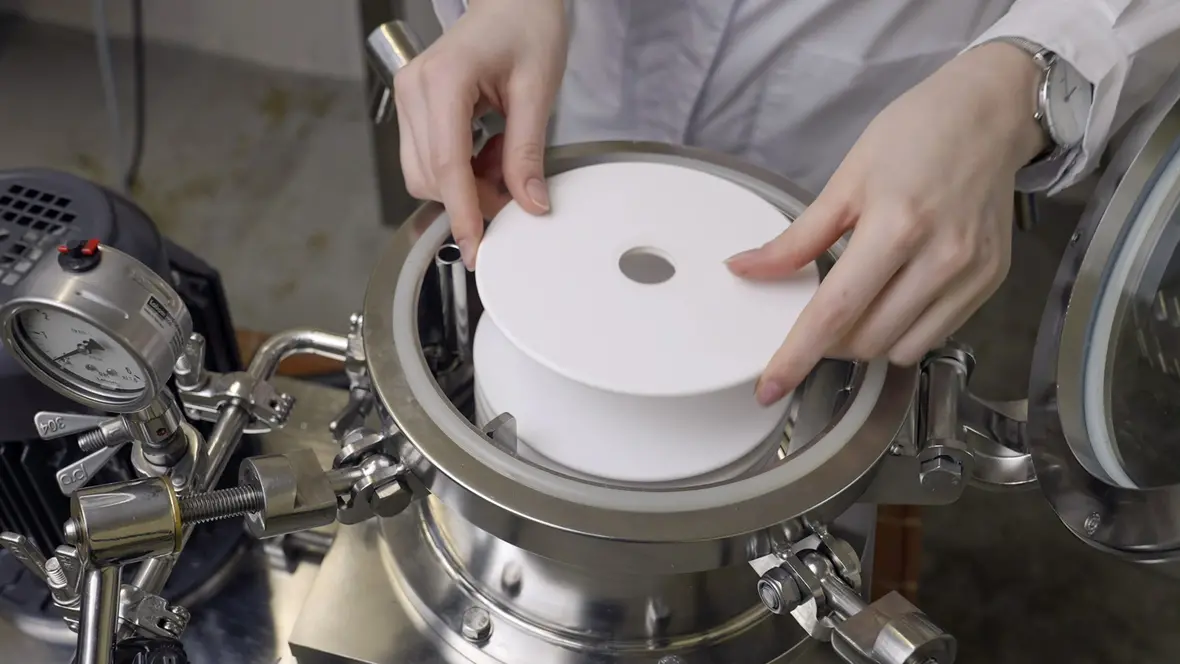

Es sind die Hände einer Person zu sehen, die Keramikfilter in eine Maschine einlegt.

Function

  • Multiple ceramic filter discs are stacked in a module.
  • During operation, these stacks rotate to control the cake layer formed during filtration.
  • The feed through the membrane is divided into two streams: the permeate/filtrate and the concentrate.
  • Particles larger than the membrane pores are retained and concentrated in the concentrate.
  • Particles smaller than the membrane pores flow through the porous structure (support) and are collected and discharged in a hollow shaft.

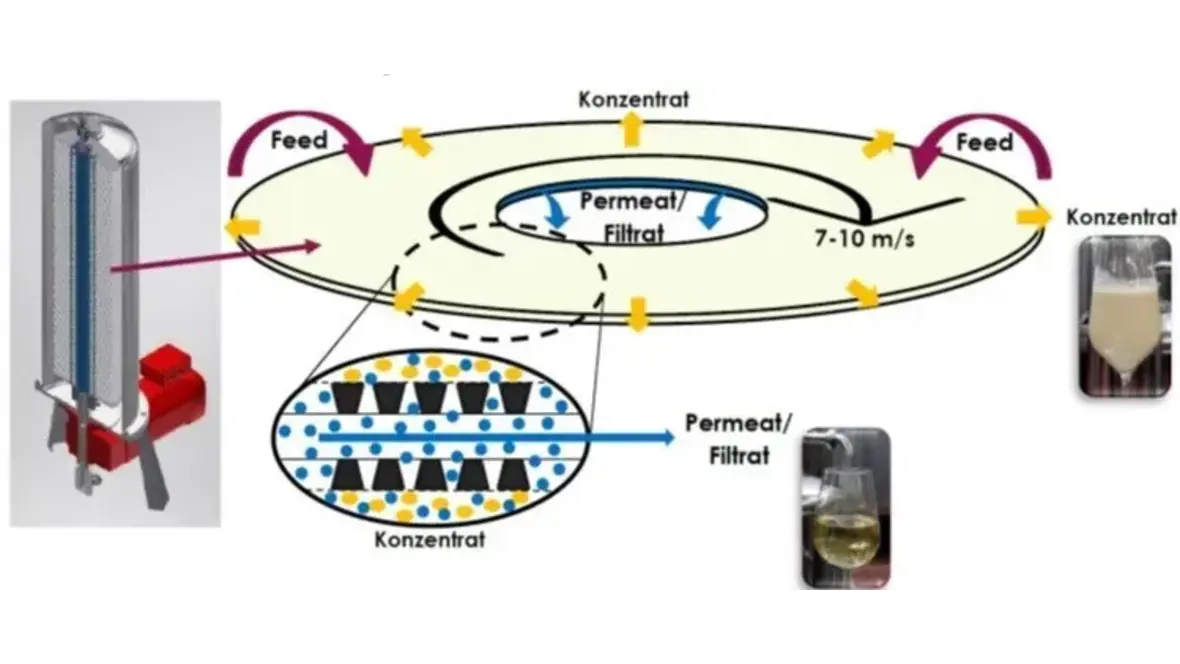

Gezeichnetes Bild der Funktionsweise einer Keramikfilterscheibe.

Ceramic Filter Discs

  • Rotating filtration discs, or dynamic cross-flow filters, are disc-shaped elements with an externally coated ceramic membrane.
  • Available in various sizes and variations (geometries)
  • The functional layer (membrane) is attached to the outside, allowing the filtration direction to proceed from the outside to the inside, known as 'outside-in'.
