Laser Welding Machine NF-LWA-K 1500

Article Nr. NF-LWA-K 1500

Laser Welding Machine NF-LWA-K 1500

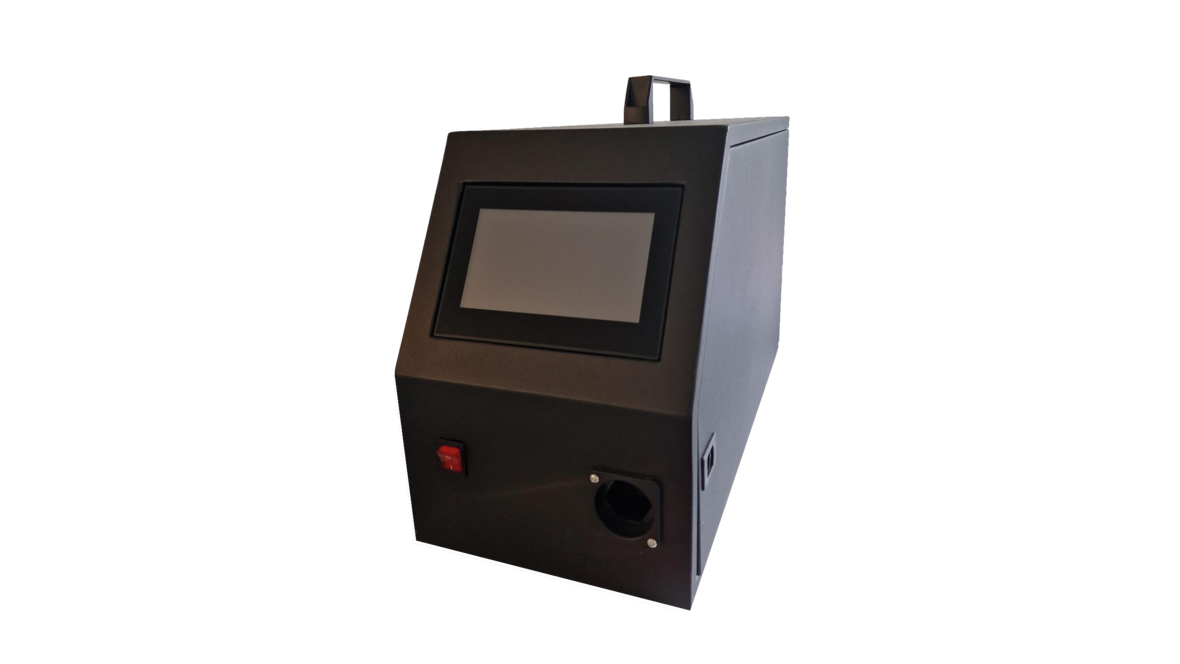

Handheld Laser Welding Machine with Automatic Wire Feeder - 1500 Watt - Air-Cooled

The compact, hand-held laser welder NF-LWA-K 1500 includes a 10 m hose package, a hand welding gun incl. automatic wire feed. The device is mounted on fixed and swivel castors. German operating software, manual and professional service!

More information and technical details can be found in the data sheet and brochure under "Downloads".

We reserve the right to make technical changes and changes in shape, color and/or weight within reason.

Shop

Advantages

  • Precise Welding Process: The handheld laser welding device enables precise and targeted welding of materials.
  • High Welding Quality: The laser beam produces high-quality welds with minimal distortion and high strength.
  • Low Heat Input: The focused laser beam heats only a small area, minimizing the heat input into the workpiece. Integrated air cooling allows for extended welding tasks without issues.
  • Versatile Application Possibilities: The device can be used on a variety of materials, including metals, plastics, and alloys.
  • No Additional Consumables: In contrast to other welding methods, no additional consumables such as welding wires or electrodes are required.
  • Low Post-Processing Effort: Precise welding control reduces the need for post-processing and grinding.
  • Efficient and Fast Welding Speed: The handheld laser welding device enables a fast and efficient welding process, resulting in time savings.
  • Lower Thermal Deformation: The low heat input minimizes the deformation of the workpiece during welding.
  • Flexibility: The handheld device allows access to hard-to-reach areas and enables precise welds in various applications.
  • Automatability: Handheld laser welding devices can be integrated into automated production lines to further increase productivity.

Properties

Which materials can be welded with it?
  • Stainless steel
  • Black steel
  • Aluminum
  • Copper
  • Brass
  • Titanium
  • Alloys such as Inconel, Monel, Hastelloy
  • Automotive and aerospace parts
  • Kitchen appliances and household goods
  • Precision and precision engineering parts

Details

What is meant by cost and time savings?
  • Fast Welding Process: Handheld laser welding devices enable a fast and efficient welding process, as this technique allows welding to be up to 7 times faster than with TIG welding.
  • Low Heat Input: The focused laser beam heats only a small area, minimizing the heat input into the workpiece.
  • High Welding Quality: Precise control of the laser beam results in high-quality welds with minimal distortion and high strength.
  • Versatile Application: Handheld laser welding devices can be used on various materials, including metals, plastics, and more.
  • No Additional Consumables: Unlike other welding processes, no additional consumables such as welding wires or electrodes are required.
  • Low Post-Processing Effort: Precise welding control reduces the need for post-processing and grinding.
  • Reduced Material Loss: The low heat input and precise focusing minimize material loss and distortion.
  • Time Savings: The fast welding process and minimal post-processing lead to significant time savings.
  • Cost Savings: Time savings, low post-processing, and reduced material loss contribute to cost reduction.
  • Automatability: Handheld laser welding devices can be integrated into automated production lines to further increase productivity.
Model: NF-LWA-K 1500
Voltage & Frequency: 230 V / 50 Hz
Laser power: 1500 W
Laser frequency: 50-5000 Hz
Wavelength: 1070 nm +- 3 nm
Stainless steel Penetration depth: 3,0 mm
Black steel Penetration depth: 3,5 mm
Aluminum Penetration depth: 3,0 mm
Weld seam width: 0-5 mm
Hosepack length: 10 m (Deviation on request)
Welding pistol: Plastic (optional Aluminium)
Wire feed specification: 0,8/1,0/1,2/1,6 mm
Overall performance: 6 kW
Application environment: Temperature: 0 C° - 45 C° | Air Humidity: <95%
Cooling type: air-cooled
Function: welding
Machine weight: 62 kg
Machine dimensions: 68 x 32 x 55 cm
