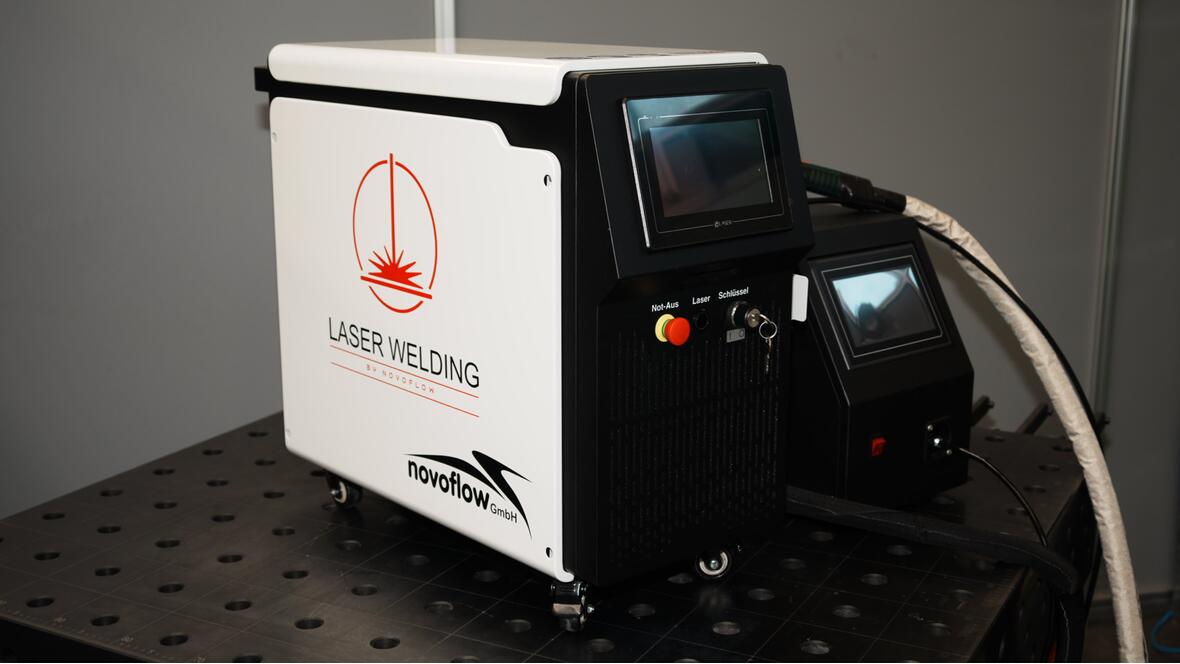

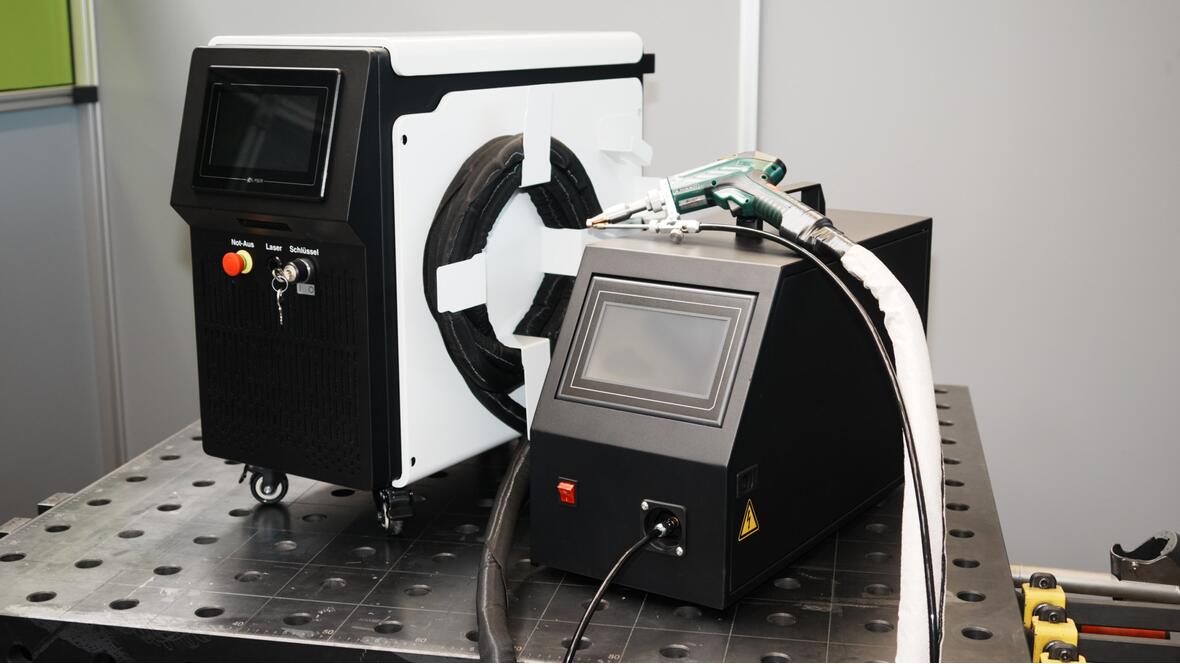

Laser Welding Machine NF-LWA-K 1500

Article Nr. 2077

The handheld laser welding device NF-LWA-K 1500 was developed for professional use in industry and trade. It meets all relevant requirements in accordance with Performance Level d and is thus approved for safe operation in industrial applications.

Product Specification:

  • Laser power: 1500 watt

  • Cooling: Integrated air cooling

  • Wire feed: Automatic (optional with double wire)

  • Safety standard: Performance Level d

  • Device type: Handheld

  • Expandability: Connection to automated systems possible on request

Features and Benefits:

  • Stable processes: Synchronized control of laser, cooling, and wire feed

  • Low heat input: Minimal material distortion with high strength

  • Flexibility: Suitable for hard-to-reach areas and diverse applications

  • High welding speed: Up to 4x faster than TIG welding

  • Precise results: Clean weld seams with minimal reworking

  • Material variety:

    • Stainless steel

    • Carbon steel

    • Aluminum

    • Copper

    • Brass

    • Titanium

    • Alloys such as Inconel, Monel, Hastelloy

  • Application areas: Metalworking companies, automotive industry, bodywork, aerospace, construction, precision mechanics, repair, manufacturing, ...

We offer a wide range of accessories and safety equipment for our laser welding systems – complemented by expert service and technical support.

If you require a laser safety officer, we offer direct placement through our website – further information can be found under Laser Safety Officer Training.

Technical modifications as well as changes in shape, color and/or weight are subject to reasonable variations.

Model: NF-LWA-K 1500
Article number: 2077
Output power: 1500 W
Voltage & Frequency: 230 V / 50 Hz
Laser frequency: 50-5000 Hz
Wavelength: 1064-1070 nm +- 3 nm
Penetration depth: 3-9 mm
Weld seam width: 0-5 mm (optionally 0-8 mm)
Hosepack length: 7 m (deviation on request)

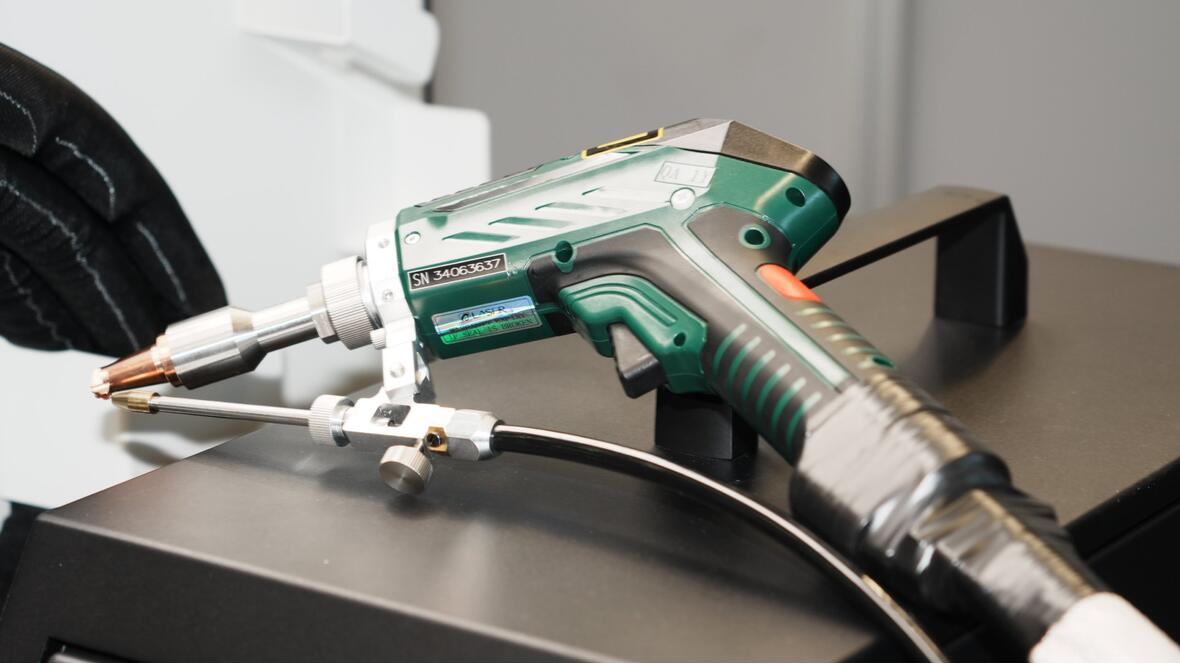

Welding pistol: DWT 22 / DWT 23 / SUP 21 / SUP T/F
Wire feeder: included (optional with double wire)
Overall performance: 4,5 kW
Application environment: Temperature: 0 C° - 45 C° | Air Humidity: <95%
Function: welding
Machine weight: 55 kg
Machine dimensions: 70 x 36 x 53 cm
Cooling system: air-cooled

We will be happy to provide you with the technical data sheets as a PDF on request.
