Laser Cleaning Machine NF-LC-S 500 / NF-LC-M 500

Article Nr. NF-LC-S 500 / NF-LC-M 500

Laser Cleaning Machine NF-LC-S 500 / NF-LC-M 500

Pulse Laser Cleaning Machine - Single- or Multimode - 500 Watt - Water-Cooled

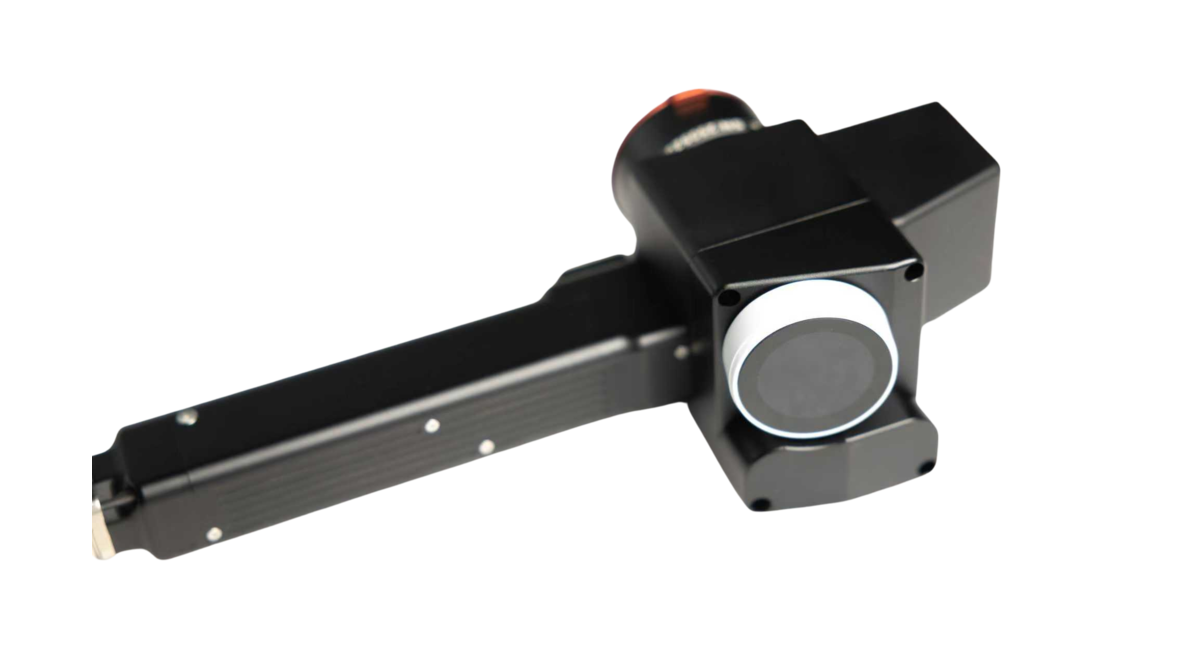

The modern hand-held laser cleaning device NF-LC-S 500 / NF-LC-M 500 contains a 10 m hose package including hand cleaning head. The device is mounted on fixed and swivel castors. The device is equipped with an F160 field mirror as standard (other field mirror models available as an option). German operating software, manual and professional service!

More information and technical details can be found in the data sheet and in the brochure under "Downloads".

We reserve the right to make technical changes and changes in shape, color and/or weight within reasonable limits.

Shop

Advantages

  • Precise cleaning: The hand-held laser cleaning device enables precise and targeted cleaning of surfaces.
  • No chemical cleaning agents: No chemical cleaning agents are required, which is environmentally friendly and saves the cost of purchasing cleaning agents.
  • No surface wear: The laser beam removes contaminants without damaging or wearing away the underlying surface.
  • Versatility: The device can be used on a variety of materials, including metals, plastics, glass, stone and more.
  • Efficient cleaning: The laser beam removes contaminants quickly and thoroughly, resulting in efficient cleaning.
  • No residue: Unlike traditional cleaning methods, the hand-held laser cleaner leaves no residue or buildup on the surface.
  • Gentle cleaning: Precise control of the laser beam means the surface is protected during cleaning.
  • Flexibility: The hand-held device allows access to hard-to-reach areas, enabling thorough cleaning in all areas.
  • Time and cost savings: Fast and efficient cleaning with the laser device saves time and reduces labor costs.
  • Safety: The hand-held laser cleaning device offers safety features such as eye protection and safety interlocks to protect users from potential hazards.

Properties

Which materials can be cleaned with it?
  • Metals (e.g. steel, stainless steel, aluminum)
  • Plastics
  • Glass
  • Ceramics
  • Stone (e.g. marble, granite)
  • Wood
  • Rubber
  • Painted surfaces
  • Coated materials

Details

What is meant by cost and time savings?
  • Efficient cleaning: Hand-held laser cleaners allow surfaces to be cleaned quickly and thoroughly.
  • No use of chemicals: No chemical cleaning agents are required, which saves costs for the purchase of cleaning agents.
  • Less labor: The hand-held laser cleaning device reduces manual labor compared to traditional cleaning methods.
  • Fast cleaning process: By using the laser beam, cleaning can be carried out significantly faster than with conventional cleaning methods.
  • No need for disassembly: The hand-held device makes it possible to clean surfaces without having to disassemble them first.
  • No surface wear: The laser beam removes contaminants without damaging or wearing away the underlying surface.
  • Less downtime: Rapid cleaning can reduce machine or equipment downtime.
  • Reusable cleaning equipment: Hand-held laser cleaning devices can be used repeatedly without the need for additional consumables.
  • Precise cleaning: Precise control of the laser beam means that even hard-to-reach areas can be cleaned efficiently.
  • Environmentally friendly: The use of laser beams for cleaning minimizes the use of chemical cleaning agents and thus reduces the environmental impact.
Model: NF-LC-S 500 NF-LC-M 500
Laser power: 500 W 500 W
Spot Mode: Single (water-cooled) Multi (water-cooled)
Max. single pulse energy (MJ): 1.5 15
Working distance/scan width: 185-438 / 105-200 mm 185-438 / 105-200 mm
20µm Flash rust (m²/h): 13 13,9
20µm Oil contamination (m²/h): 14,3 15,3
20µm Paint/varnish (m²/h): 10,1 10,5
5µm galvanized sheet metal (m²/h): 10,8 11,9
Floor or wall surface (m²/h): 12 16,2
Car paint (m²/h): 2 2,2
Aluminum oxide film (m²/h): 7 -
Hot rolled steel oxide film (m²/h): 1,1 -
Voltage: 230 V / 50 Hz 230 V / 50 Hz
Connected load: 3 kW 3 kW
Dimension (L x W x H): 92 x 58 x 88 cm 92 x 58 x 88 cm
Weight (kg): 177 177
